Emergency Luminaire Series 30
Emergency Luminaire Series 30
Full description

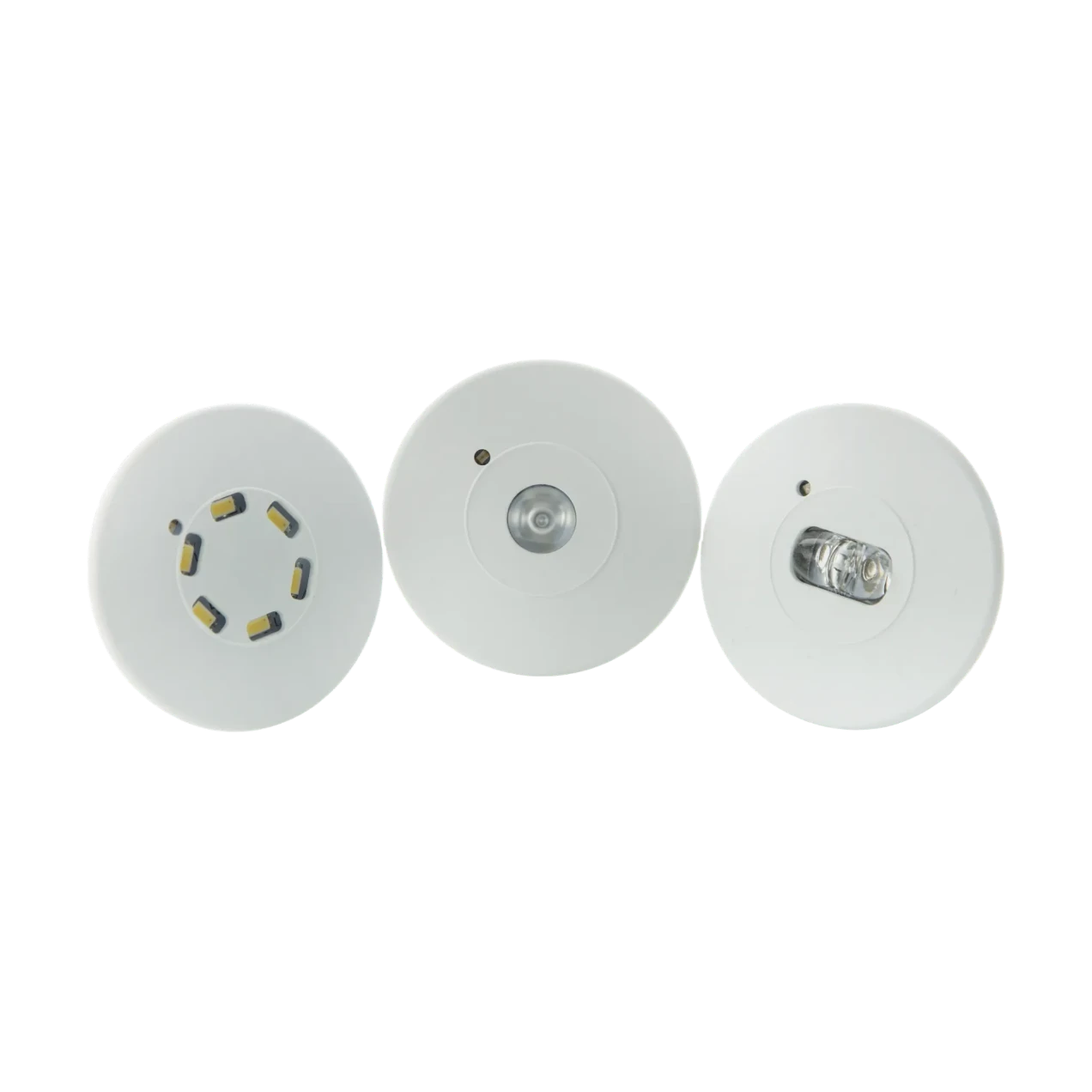

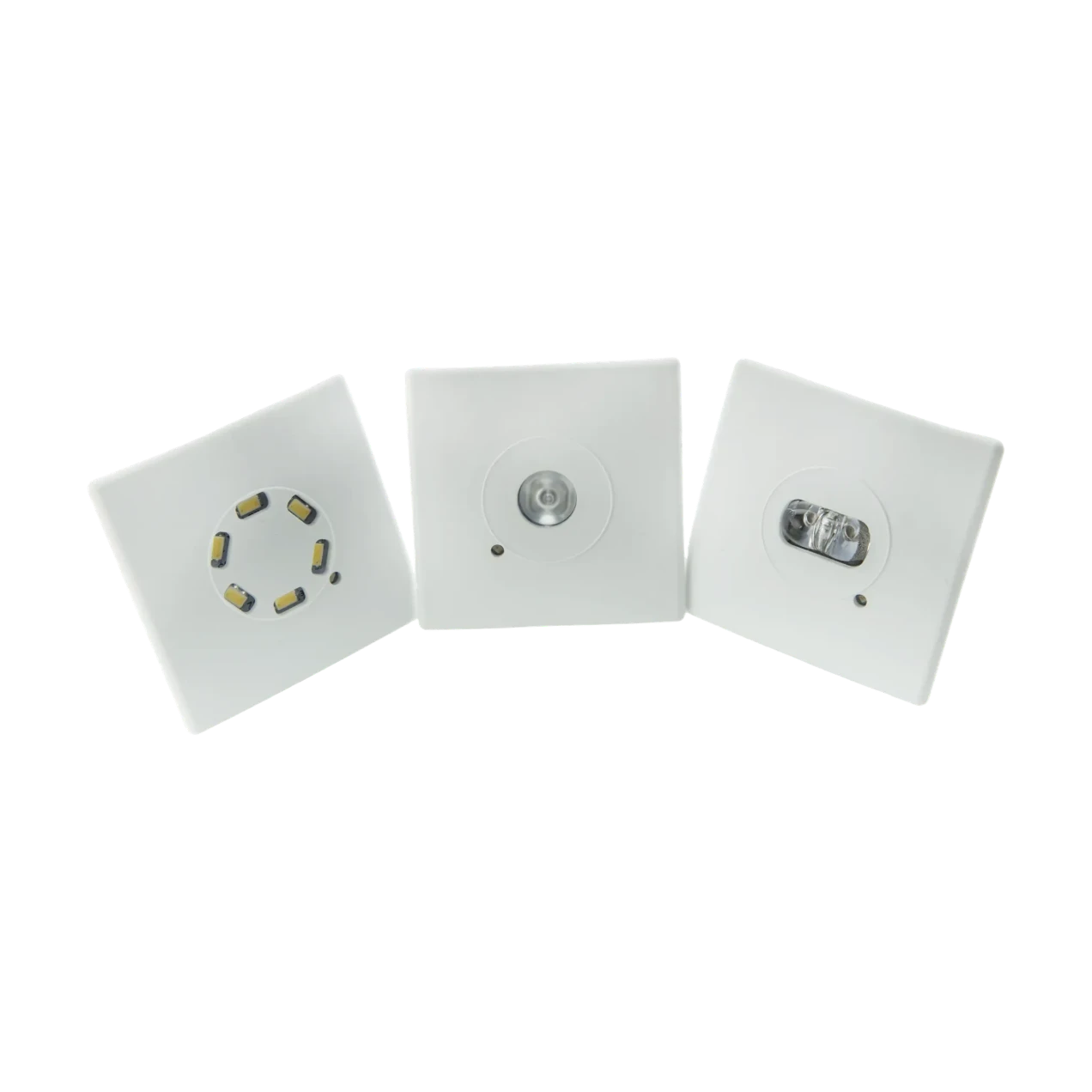

Emergency luminaire prepared for recessed ceiling installation. It consists of an optical assembly and a driver. Designed for quick installation. Three lens options are available: standard, road and anti-panic.
Available from 50 to 300 lm, with 1, 2 and 3 hours autonomy, in maintained and non-maintained versions, and Intensive, Road, Spot and Standard optics.
Manufactured by Aerlux Iluminación in Spain.
Products specifications
- Self-Test No
- IP Rating IP44/20
- IK Rating IK04
- Insulation Class Class II
- Electrical Supply 230Vac-50/60Hz
- Emergency Lamp Power LEDs
- Colour Temperature 5000 K
- Charge Indicator Green LED
- Operating Temperature +5°C to +40°C
- LED Lifespan 100,000 hours
- Battery Type Ni-Cd
- Glow Wire Test 850ºC
Emergency Luminaire Series 30
| Reference | Maintained | Autonomy (hours) | Luminous Flux (lm) | Control | Colour | Optics | Shape | Power Supply | Pictogram | Lighting Configuration | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30050C | No | 1 | 50 | Standard | Square | Self-contained | No screen printing | ||||
| 30050CI | No | 1 | 50 | Intensive | Square | Self-contained | No screen printing | ||||
| 30050CV | No | 1 | 50 | Road | Square | Self-contained | No screen printing | ||||
| 30050PC | Yes | 1 | 50 | Standard | Square | Self-contained | No screen printing | ||||
| 30050PCI | Yes | 1 | 50 | Intensive | Square | Self-contained | No screen printing | ||||
| 30050PCV | Yes | 1 | 50 | Road | Square | Self-contained | No screen printing | ||||
| 30050PR | Yes | 1 | 50 | Standard | Round | Self-contained | No screen printing | ||||
| 30050PRI | Yes | 1 | 50 | Intensive | Round | Self-contained | No screen printing | ||||
| 30050PRV | Yes | 1 | 50 | Road | Round | Self-contained | No screen printing | ||||
| 30050R | No | 1 | 50 | Standard | Round | Self-contained | No screen printing | ||||
| 30050RI | No | 1 | 50 | Intensive | Round | Self-contained | No screen printing | ||||
| 30050RV | No | 1 | 50 | Road | Round | Self-contained | No screen printing | ||||
| 30050SCI | No | 1 | 50 | Intensive | Square | 230V | No screen printing | ||||
| 30050SCV | No | 1 | 50 | Road | Square | 230V | No screen printing | ||||
| 30050SRI | No | 1 | 50 | Intensive | Round | 230V | No screen printing | ||||
| 30050SRV | No | 1 | 50 | Road | Round | 230V | No screen printing | ||||
| 30053C | No | 3 | 50 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30053CI | No | 3 | 50 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30053CV | No | 3 | 50 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30053PC | Yes | 3 | 50 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30053PCI | Yes | 3 | 50 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30053PCV | Yes | 3 | 50 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30053PR | Yes | 3 | 50 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30053PRI | Yes | 3 | 50 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30053PRV | Yes | 3 | 50 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30053R | No | 3 | 50 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30053RI | No | 3 | 50 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30053RV | No | 3 | 50 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30062C | No | 2 | 60 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30062CI | No | 2 | 60 | Intensive | Square | Self-contained | No screen printing | ||||
| 30062CV | No | 2 | 60 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30062PC | Yes | 2 | 60 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30062PCI | Yes | 2 | 60 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30062PCV | Yes | 2 | 60 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30062PR | Yes | 2 | 60 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30062PRI | Yes | 2 | 60 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30062PRV | Yes | 2 | 60 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30062R | No | 2 | 60 | Standard | Round | Self-contained | No screen printing | ||||
| 30062RI | No | 2 | 60 | Intensive | Round | Self-contained | No screen printing | ||||
| 30062RV | No | 2 | 60 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30070C | No | 1 | 70 | Standard | Square | Self-contained | No screen printing | ||||
| 30070CI | No | 1 | 70 | Intensive | Square | Self-contained | No screen printing | ||||
| 30070CV | No | 1 | 70 | Road | Square | Self-contained | No screen printing | ||||
| 30070PC | Yes | 1 | 70 | Standard | Square | Self-contained | No screen printing | ||||
| 30070PCI | Yes | 1 | 70 | Intensive | Square | Self-contained | No screen printing | ||||
| 30070PCV | Yes | 1 | 70 | Road | Square | Self-contained | No screen printing | ||||
| 30070PR | Yes | 1 | 70 | Standard | Round | Self-contained | No screen printing | ||||
| 30070PRI | Yes | 1 | 70 | Intensive | Round | Self-contained | No screen printing | ||||
| 30070PRV | Yes | 1 | 70 | Road | Round | Self-contained | No screen printing | ||||
| 30070R | No | 1 | 70 | Standard | Round | Self-contained | No screen printing | ||||
| 30070RI | No | 1 | 70 | Intensive | Round | Self-contained | No screen printing | ||||
| 30070RV | No | 1 | 70 | Road | Round | Self-contained | No screen printing | ||||
| 30070SCI | No | 1 | 70 | Intensive | Square | 230V | No screen printing | ||||
| 30070SCV | No | 1 | 70 | Road | Square | 230V | No screen printing | ||||
| 30070SRI | No | 1 | 70 | Intensive | Round | 230V | No screen printing | ||||
| 30070SRV | No | 1 | 70 | Road | Round | 230V | No screen printing | ||||
| 30073C | No | 3 | 70 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30073CI | No | 3 | 70 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30073CV | No | 3 | 70 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30073PC | Yes | 3 | 70 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30073PCI | Yes | 3 | 70 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30073PCV | Yes | 3 | 70 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30073PR | Yes | 3 | 70 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30073PRI | Yes | 3 | 70 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30073PRV | Yes | 3 | 70 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30073R | No | 3 | 70 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30073RI | No | 3 | 70 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30073RV | No | 3 | 70 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30100C | No | 1 | 100 | Standard | Square | Self-contained | No screen printing | ||||
| 30100CI | No | 1 | 100 | Intensive | Square | Self-contained | No screen printing | ||||
| 30100CS | No | 1 | 100 | No remote control | Spot | Square | Self-contained | No screen printing | |||
| 30100CV | No | 1 | 100 | Road | Square | Self-contained | No screen printing | ||||
| 30100PC | Yes | 1 | 100 | Standard | Square | Self-contained | No screen printing | ||||
| 30100PCI | Yes | 1 | 100 | Intensive | Square | Self-contained | No screen printing | ||||
| 30100PCV | Yes | 1 | 100 | Road | Square | Self-contained | No screen printing | ||||
| 30100PR | Yes | 1 | 100 | Standard | Round | Self-contained | No screen printing | ||||
| 30100PRI | Yes | 1 | 100 | Intensive | Round | Self-contained | No screen printing | ||||
| 30100PRV | Yes | 1 | 100 | Road | Round | Self-contained | No screen printing | ||||
| 30100R | No | 1 | 100 | Standard | Round | Self-contained | No screen printing | ||||
| 30100RI | No | 1 | 100 | Intensive | Round | Self-contained | No screen printing | ||||
| 30100RS | No | 1 | 100 | No remote control | Spot | Round | Self-contained | No screen printing | |||
| 30100RV | No | 1 | 100 | Road | Round | Self-contained | No screen printing | ||||
| 30100SCI | No | 1 | 100 | Intensive | Square | 230V | No screen printing | ||||
| 30100SCV | No | 1 | 100 | Road | Square | 230V | No screen printing | ||||
| 30100SRI | No | 1 | 100 | Intensive | Round | 230V | No screen printing | ||||
| 30100SRV | No | 1 | 100 | Road | Round | 230V | No screen printing | ||||
| 30102C | No | 2 | 100 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30102CI | No | 2 | 100 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30102CV | No | 2 | 100 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30102PC | Yes | 2 | 100 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30102PCI | Yes | 2 | 100 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30102PCV | Yes | 2 | 100 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30102PR | Yes | 2 | 100 | Standard | Round | Self-contained | No screen printing | ||||
| 30102PRI | Yes | 2 | 100 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30102PRV | Yes | 2 | 100 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30102R | No | 2 | 100 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30102RI | No | 2 | 100 | Intensive | Round | Self-contained | No screen printing | ||||
| 30102RV | No | 2 | 100 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30103C | No | 3 | 100 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30103CI | No | 3 | 100 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30103CV | No | 3 | 100 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30103PC | Yes | 3 | 100 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30103PCI | Yes | 3 | 100 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30103PCV | Yes | 3 | 100 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30103PR | Yes | 3 | 100 | No remote control | Standard | Round | Self-contained | No screen printing | |||
| 30103PRI | Yes | 3 | 100 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30103PRV | Yes | 3 | 100 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30120C | No | 1 | 120 | Standard | Square | Self-contained | No screen printing | ||||
| 30120CI | No | 1 | 120 | Intensive | Square | Self-contained | No screen printing | ||||
| 30120CV | No | 1 | 120 | Road | Square | Self-contained | No screen printing | ||||
| 30120PC | Yes | 1 | 120 | Standard | Square | Self-contained | No screen printing | ||||
| 30120PCI | Yes | 1 | 120 | Intensive | Square | Self-contained | No screen printing | ||||
| 30120PCV | Yes | 1 | 120 | Road | Square | Self-contained | No screen printing | ||||
| 30120PR | Yes | 1 | 120 | Standard | Round | Self-contained | No screen printing | ||||
| 30120PRI | Yes | 1 | 120 | Intensive | Round | Self-contained | No screen printing | ||||
| 30120PRV | Yes | 1 | 120 | Road | Round | Self-contained | No screen printing | ||||
| 30120R | No | 1 | 120 | Standard | Round | Self-contained | No screen printing | ||||
| 30120RI | No | 1 | 120 | Intensive | Round | Self-contained | No screen printing | ||||
| 30120RV | No | 1 | 120 | Road | Round | Self-contained | No screen printing | ||||
| 30120SCI | No | 1 | 120 | Intensive | Square | 230V | No screen printing | ||||
| 30120SCV | No | 1 | 120 | Road | Square | 230V | No screen printing | ||||
| 30120SRI | No | 1 | 120 | Intensive | Round | 230V | No screen printing | ||||
| 30120SRV | No | 1 | 120 | Road | Round | 230V | No screen printing | ||||
| 30150C | No | 1 | 150 | Standard | Square | Self-contained | No screen printing | ||||
| 30150CI | No | 1 | 150 | Intensive | Square | Self-contained | No screen printing | ||||
| 30150CV | No | 1 | 150 | Road | Square | Self-contained | Evacuation | ||||
| 30150PC | Yes | 1 | 150 | Standard | Square | Self-contained | No screen printing | ||||
| 30150PCI | Yes | 1 | 150 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30150PCV | Yes | 1 | 150 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30150PR | Yes | 1 | 150 | Standard | Round | Self-contained | No screen printing | ||||
| 30150PRI | Yes | 1 | 150 | Intensive | Round | Self-contained | No screen printing | ||||
| 30150PRV | Yes | 1 | 150 | Road | Round | Self-contained | No screen printing | ||||
| 30150R | No | 1 | 150 | Standard | Round | Self-contained | No screen printing | ||||
| 30150RI | No | 1 | 150 | Intensive | Round | Self-contained | No screen printing | ||||
| 30150RV | No | 1 | 150 | Road | Round | Self-contained | No screen printing | ||||
| 30152C | No | 2 | 150 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30152CI | No | 2 | 150 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30152CV | No | 2 | 150 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30152PC | Yes | 2 | 150 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30152PCI | Yes | 2 | 150 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30152PCV | Yes | 2 | 150 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30152PR | Yes | 2 | 150 | Standard | Round | Self-contained | No screen printing | ||||
| 30152PRI | Yes | 2 | 150 | Intensive | Round | Self-contained | No screen printing | ||||
| 30152PRV | Yes | 2 | 150 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30152R | No | 2 | 150 | Standard | Round | Self-contained | No screen printing | ||||
| 30152RI | No | 2 | 150 | Intensive | Round | Self-contained | No screen printing | ||||
| 30152RV | No | 2 | 150 | Road | Round | Self-contained | No screen printing | ||||
| 30200C | No | 1 | 200 | Standard | Square | Self-contained | No screen printing | ||||
| 30200CI | No | 1 | 200 | Intensive | Square | Self-contained | No screen printing | ||||
| 30200CS | No | 1 | 200 | No remote control | Spot | Square | Self-contained | No screen printing | |||
| 30200CV | No | 1 | 200 | Road | Square | Self-contained | Evacuation | ||||
| 30200PC | Yes | 1 | 200 | Standard | Square | Self-contained | No screen printing | ||||
| 30200PCI | Yes | 1 | 200 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30200PCV | Yes | 1 | 200 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30200PR | Yes | 1 | 200 | Standard | Round | Self-contained | No screen printing | ||||
| 30200PRI | Yes | 1 | 200 | Intensive | Round | Self-contained | No screen printing | ||||
| 30200PRV | Yes | 1 | 200 | Road | Round | Self-contained | No screen printing | ||||
| 30200R | No | 1 | 200 | Standard | Round | Self-contained | No screen printing | ||||
| 30200RI | No | 1 | 200 | Intensive | Round | Self-contained | No screen printing | ||||
| 30200RS | No | 1 | 200 | No remote control | Spot | Round | Self-contained | No screen printing | |||
| 30200RV | No | 1 | 200 | Road | Round | Self-contained | Evacuation | ||||
| 30260PC | Yes | 1 | 260 | No remote control | Standard | Square | Self-contained | No screen printing | LED | ||
| 30260PCI | Yes | 1 | 260 | No remote control | Intensive | Square | Self-contained | No screen printing | LED | ||
| 30260PCV | Yes | 1 | 260 | No remote control | Road | Square | Self-contained | Evacuation | LED | ||
| 30300C | No | 1 | 300 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30300CI | No | 1 | 300 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30300CS | No | 1 | 300 | No remote control | Spot | Square | Self-contained | No screen printing | |||
| 30300CV | No | 1 | 300 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30300PC | Yes | 1 | 300 | No remote control | Standard | Square | Self-contained | No screen printing | |||
| 30300PCI | Yes | 1 | 300 | No remote control | Intensive | Square | Self-contained | No screen printing | |||
| 30300PCV | Yes | 1 | 300 | No remote control | Road | Square | Self-contained | Evacuation | |||
| 30300PRI | Yes | 1 | 300 | No remote control | Intensive | Round | Self-contained | No screen printing | |||
| 30300PRV | Yes | 1 | 300 | No remote control | Road | Round | Self-contained | Evacuation | |||
| 30300RS | No | 1 | 300 | No remote control | Spot | Round | Self-contained | No screen printing |
