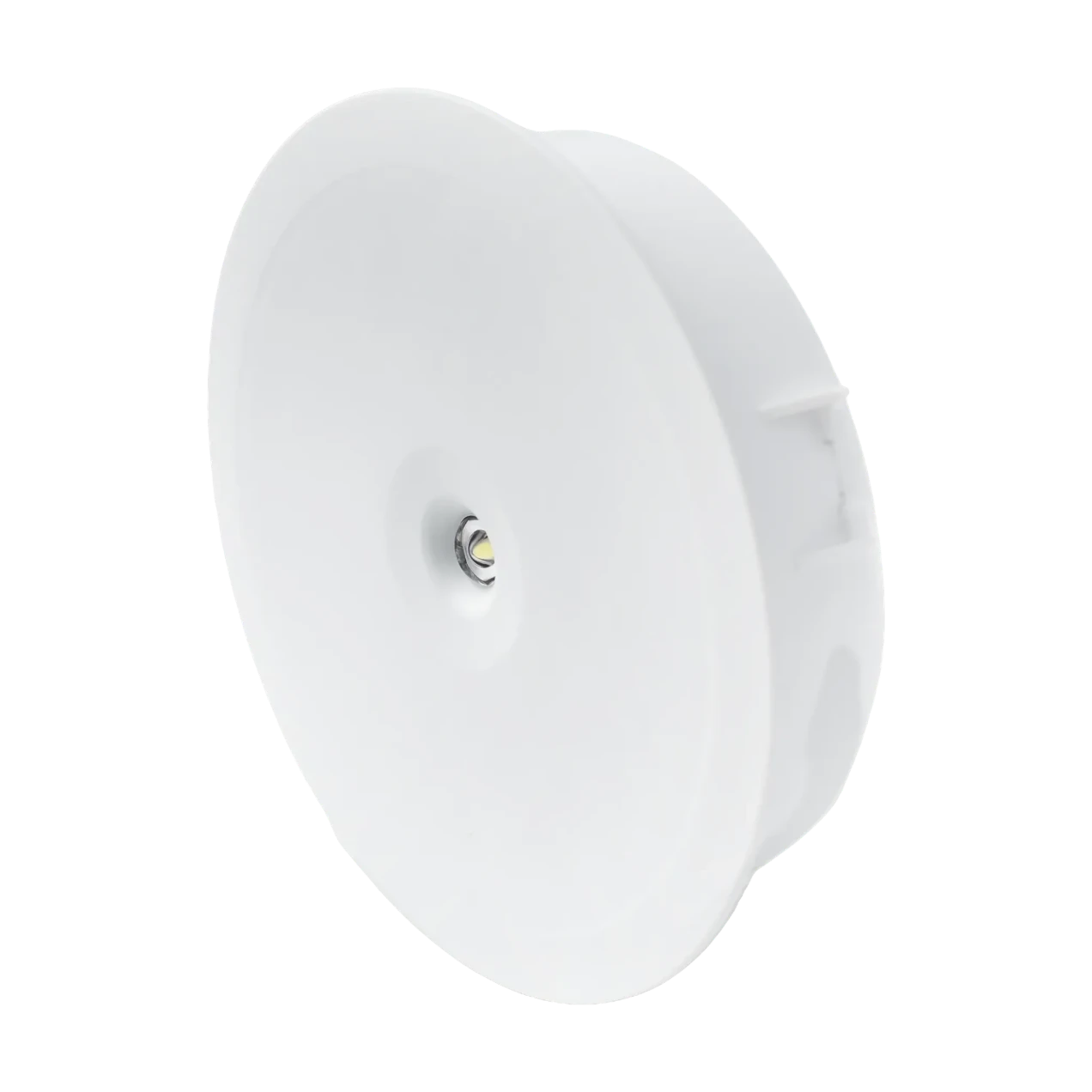

Emergency Luminaire Series 37
Emergency Luminaire Series 37
Full description
Emergency luminaire prepared for surface mounting on ceiling or wall. Designed for quick installation with a pre-plate. Two lens options are available: road and anti-panic. It is built from a cover and a base made of polycarbonate.
Available from 100 to 500 lm, with 1, 2 and 3 hours autonomy, in maintained and non-maintained versions, and Intensive, Road and Spot optics.
Manufactured by Aerlux Iluminación in Spain.
Products specifications
- Self-Test No
- IP Rating IP44
- IK Rating IK04
- Insulation Class Class II
- Electrical Supply 230Vac-50/60Hz
- Emergency Lamp Power LEDs
- Colour Temperature 5000 K
- Charge Indicator Green LED
- LED Lifespan 100,000 hours
- Battery Type Ni-Cd
- Glow Wire Test 850ºC
Emergency Luminaire Series 37
| Reference | Maintained | Autonomy (hours) | Luminous Flux (lm) | Control | Colour | Optics | Shape | Power Supply | Installation | Pictogram | OEM Variant | Lighting Configuration | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37100 | No | 1 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37100I | No | 1 | 100 | Intensive | Standard | No screen printing | |||||||
| 37100P | Yes | 1 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37100PI | Yes | 1 | 100 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37100PV | Yes | 1 | 100 | Road | Standard | No screen printing | |||||||
| 37100V | No | 1 | 100 | Road | Standard | Evacuation | |||||||
| 37102 | No | 2 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37102I | No | 2 | 100 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37102P | Yes | 2 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37102PI | Yes | 2 | 100 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37102PV | Yes | 2 | 100 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37102V | No | 2 | 100 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37103 | No | 3 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37103I | No | 3 | 100 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37103P | Yes | 3 | 100 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37103PI | Yes | 3 | 100 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37103PV | Yes | 3 | 100 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37103V | No | 3 | 100 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37150 | No | 1 | 150 | No remote control | Spot | Round | Self-contained | Standard | No screen printing | ||||
| 37150I | No | 1 | 150 | Intensive | Standard | No screen printing | |||||||
| 37150P | Yes | 1 | 150 | No remote control | Spot | Round | Self-contained | Standard | No screen printing | ||||
| 37150PI | Yes | 1 | 150 | Intensive | Standard | No screen printing | |||||||
| 37150PV | Yes | 1 | 150 | No remote control | Road | Round | Self-contained | Standard | Evacuation | ||||
| 37150V | No | 1 | 150 | Road | Standard | Evacuation | |||||||
| 37153 | No | 3 | 150 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37153I | No | 3 | 150 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37153P | Yes | 3 | 150 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37153PI | Yes | 3 | 150 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37153PV | Yes | 3 | 150 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37153V | No | 3 | 150 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37200 | No | 1 | 200 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37200I | No | 1 | 200 | Intensive | Standard | No screen printing | |||||||
| 37200P | Yes | 1 | 200 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37200PI | Yes | 1 | 200 | No remote control | Intensive | Standard | No screen printing | ||||||
| 37200PV | Yes | 1 | 200 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37200V | No | 1 | 200 | Road | Standard | Evacuation | |||||||
| 37202 | No | 2 | 200 | No remote control | Spot | Self-contained | Recessed | No screen printing | |||||
| 37202I | No | 2 | 200 | No remote control | Intensive | Self-contained | Recessed | No screen printing | |||||
| 37202P | Yes | 2 | 200 | No remote control | Spot | Self-contained | Recessed | No screen printing | |||||
| 37202PI | Yes | 2 | 200 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37202PV | Yes | 2 | 200 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37202V | No | 2 | 200 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37252 | No | 2 | 250 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37252I | No | 2 | 250 | Intensive | Standard | No screen printing | |||||||
| 37252P | Yes | 2 | 250 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37252PI | Yes | 2 | 250 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37252PV | Yes | 2 | 250 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37252V | No | 2 | 250 | Road | Standard | No screen printing | |||||||
| 37300 | No | 1 | 300 | No remote control | Spot | Self-contained | Standard | No screen printing | LED | ||||
| 37300I | No | 1 | 300 | Intensive | Standard | No screen printing | |||||||
| 37300P | Yes | 1 | 300 | No remote control | Spot | Self-contained | Standard | No screen printing | LED | ||||
| 37300PI | Yes | 1 | 300 | No remote control | Intensive | Self-contained | Standard | No screen printing | LED | ||||
| 37300PV | Yes | 1 | 300 | Road | Standard | No screen printing | |||||||
| 37300V | No | 1 | 300 | Road | Standard | Evacuation | |||||||
| 37400 | No | 1 | 400 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37400I | No | 1 | 400 | Intensive | Recessed | No screen printing | |||||||
| 37400P | Yes | 1 | 400 | No remote control | Spot | Self-contained | Standard | No screen printing | |||||
| 37400PI | Yes | 1 | 400 | Intensive | Standard | No screen printing | |||||||
| 37400PV | Yes | 1 | 400 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37400V | No | 1 | 400 | No remote control | Road | Self-contained | Standard | Evacuation | |||||
| 37500I | No | 1 | 500 | No remote control | Intensive | Self-contained | Standard | No screen printing | |||||
| 37500V | No | 1 | 500 | No remote control | Road | Self-contained | Standard | Evacuation |
